Have you ever wondered exactly how an M4 rifle works? Then you are in the right place. In this guide, we will walk you through the parts of an M4 in a way that’s beginner-friendly, detailed, and suitable for both beginners and firearm enthusiasts. This blog post will introduce you to each part of an M4, its functionality, and how it contributes to a rifle’s performance.
What makes the M4 so popular is its modular design. This means that it can be customized and configured for different purposes.
A Quick Overview of the M4 Carbine
The M4 is a magazine-fed, gas-operated, lightweight carbine with a carbine configuration and emphasis on speed, versatility, and maneuverability. It was designed as a development of the M16 rifle and was meant to meet the needs of modern combat in that it offered a better handling characteristic at close range without compromising long-distance precision.
A Brief History of the M4
The history of M4 began in the late 80s when the US military was searching for how to provide troops with a weapon that could be shorter and lighter to allow the troops to become more mobile. The M4 was adopted for official use in the 1990s and has gradually replaced a large part of the M16 in frontline duty. Over the years, it has been improved to have better ergonomics, modular rails, as well as improved reliability.
M4’s Key Characteristics
- Short barrel: Typically 14.5 inches for military models and 16 inches for civilian versions.
- Collapsible stock: It has an adjustable length for different shooter preferences and gear setups.
- Direct impingement gas system: It redirects gas from the fired round to cycle the action.
- High modularity: It is easy to customize with optics, grips, lights, and more.
Full Breakdown of M4 Components
In this section, we will discuss the M4 parts list, giving a full M4 breakdown of both the internal and external components.

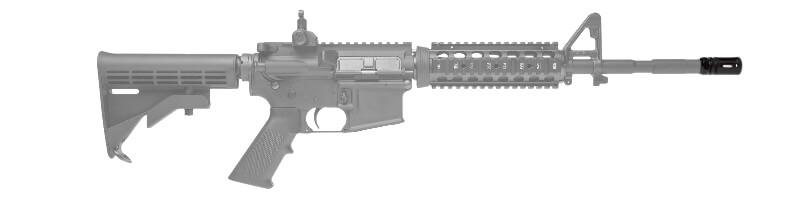

Muzzle Device / Flash Hider
The flash hider is a muzzle device that decreases the obvious flash of the barrel and, in some cases, assists in the management of the recoil on the rifle.
Outer Barrel
The outer barrel is the route that the bullet goes through once it is fired. Precision is always taken into consideration when making this component to ensure accuracy.
Gas Block & Gas Tube
A portion of the escaping gases in the round fired off is diverted by the gas block into the gas tube. These gases are then redirected back in the gas tube to activate the bolt.
Handguard / Rail System
The handguard or rail system is a component that protects your hands from the heat of the barrel. It also provides attachment points for accessories like lights, lasers, and foregrips.
Receiver Group (Upper & Lower)
The receiver group has two components: the upper receiver and the lower receiver. The upper receiver holds the barrel and the bolt carrier group together with the charging handle, whereas the lower receiver holds the magazine well, the stock attachment point, as well as the fire control grip. The two are the core of the M4.
Bolt Carrier Group (BCG)
The bolt carrier group chambers rounds, locks the bolt, ignites the primer, and ejects spent casings. It is an essential component at the core of the rifle’s operation.
Charging Handle
The charging handle is used to manually chamber a round or clear a malfunction.
Buffer Tube & Castle Nut
The buffer tube and castle nut house the buffer and recoil spring. They help to absorb and control recoil.
Stock
The stock is a component that can be adjusted to fit the shooter’s arm length and shooting stance.
Sling Plate / Receiver End Plate
The sling plate or the receiver end plate is a mounting point for a rifle sling. It makes it easier to carry the rifle and be ready.
Pistol Grip
The pistol grip provides ergonomic control for the firing hand.
Trigger Group
The trigger group is a group of components that includes the trigger, hammer, disconnector, and safety selector. It controls firing and safety modes.
Magazine Well & Release
This is a component that holds the magazine securely in place and makes quick changes during reloads possible.
For beginners, the first step to maintaining and customizing a rifle is to know the M4 carbine parts names.
Understanding How It All Works Together
When you pull the trigger, the M4’s carefully engineered systems work together in harmony, but how does this happen? How the M4 rifle parts work will be discussed in this section.
How the Gas System Functions
The gas that comes from the fired cartridge travels through the barrel and goes into the gas block. From the gas block, it enters the gas tube and goes into the BCG. The BCG then pushes it backwards to begin the cycling process.
Recoil, Ejection, and Reset Explained
The backward movement done by the BCG removes the spent casing and compresses the buffer spring. The spring then drives the bolt forward so that it can chamber a new round and get ready for the next shot.
Maintenance Essentials
To make sure your M4 has guaranteed reliability and durability, you need to take care of it and maintain it properly.
Cleaning the BCG and Barrel
To avoid the occurrence of carbon deposits and subsequent malfunction of the rifle, ensure that after use, the barrel and the BCG of the rifle are cleaned.
Proper Inspection and Storage Tips
Look at your M4 rifle, check for loose screws, worn-out parts of your rifle, or carbon deposits. You also need to store it in a cool, dry place. You should have a thin oil coat on the metal surfaces to avoid rust.
Common Wear Points to Watch
This part of the maintenance of your rifle is knowing how to look after any wear and tear that could appear when using the rifle. Some sections have a short life, such as the gas rings, the extractor springs, and the buffer springs. It is also possible to have spares as fast replacements.
Training & Usage Tips
It is one thing to own an M4 and another to use it safely, effectively, and with confidence. Whether you’re a new rifle owner or a long-time enthusiast who is looking to hone your skills, training is what bridges the gap between owning a rifle and mastering it.
The following is a list of practical tips that can set you not only on the path to owning an M4 but also on the path of being able to actually use it properly.
Mastering the Controls (Selector, Mag Release, etc.)
The first step to operating any firearm is knowing its controls inside and out. On the M4, these are the essential control parts:
- Selector Switch: This is your safety and fire control lever. It is located on the left side above the pistol grip. Civilian models typically have “Safe” and “Semi” settings, while military models may be more advanced and include the “Burst” or “Auto.” Practice flipping it between safe and fire without taking your eyes off the target.
- Magazine Release: This is found on the right side above the trigger guard, and is activated by the index finger of the hand you use in firing. Get used to changing a magazine and releasing a light one.
- Bolt Catch/Release: It is located on the left. It holds the bolt back so it does not go forward after the last bullet, and then, on releasing it, you can chamber a new bullet.
- Charging Handle: Can be used to chamber a round or clear a malfunction. It is a good idea to get into the practice of pulling it straight back and releasing it to snap you forward by the spring.
These controls are key to learning the ability to perform efficient reloads, stoppage clearances, and ensuring that your rifle will make it through pressurizing conditions.
Handling and Safety Habits
Safe handling of a rifle is not an option, but it is the most significant thing when it comes to responsible shooting. The following are tips to provide safety whenever you are handling a rifle.
- Handle firearms as though they were loaded, even when you know that they are not.
- Do not place your finger on the trigger until you have the target in sight, ready to shoot.
- Direct the muzzle toward a safe direction either during maintenance, at the range, or in the case of storage.
- Be aware of your target and what is beyond it, as bullets have a long range.
In addition, you should be in a stable position with a good base of support when shooting and have a firm grip to control recoil. These tips will make you safe and enhance your grip on the rifle.
Best Drills for Familiarization
The more you practice, the easier it is to build muscle memory, and when you build muscle memory, speed and accuracy become second nature. For M4 beginners, here are some highly effective drills that can make you a pro with time:
- Dry-Fire Drills: Practice shooting without ammunition. What this does is it helps you get comfortable with the process without recoil force or noise.
- Magazine Change Drills: Work on changing magazines even when you’re not actively shooting. This will help you master the act of chambering rounds as quickly and smoothly as possible.
- Malfunction Clearing: Learn how to identify common causes of stoppages, such as a failure to feed or failure to eject, without hesitation.
Final Thoughts on Mastering the M4
The M4 is a versatile, solid rifle, but a master of this weapon is one who knows every inch of it. It is necessary to know the parts names of the M4, how these parts collaborate, and how to care for them to maintain safety and precision. It is not all about shooting, but it is more about developing a relationship with your rifle, until all actions become natural and instinctive.
No matter whether you learn the parts of an M4 carbine, memorize the M4 parts name, or read an M4 parts breakdown, this type of knowledge is the core of any effective training. Take this blog post as your entry point, an instruction guide to both newbies and experienced shooters.
From understanding the M4 components to learning how to handle your rifle safely, the more time you spend with your rifle, the more your skills will become second nature.
FAQs
What ammo does the M4 use?
The common ammunition used on an M4 is 5.56×45 mm NATO ammo, but it is also capable of using.233 Remington. Never load unless you are certain that the load is compatible with your barrel, which is marked.
What’s the effective range of an M4?
The precise range of an M4 lies at 500-600 meters, depending on the shooter’s skills, kind of ammo, and weather conditions.
Can I customize my M4 easily?
Yes. The M4 is modular, which allows an easy replacement of M4 rifle components. Customization of the optics, grips, stocks, and even handguards is easily done to fit your needs.
How often should I clean it?
You can clean your M4 after every use. Your focus while cleaning should be on areas that have a tendency to collect carbon particles, like the BCG and chamber. Remember, a clean rifle is a reliable rifle!
What are the differences between military and civilian M4s?
The military M4 is slightly different from the civilian M4 in having shorter barrel lengths and select fire capability. Civilian models are typically semi-automatic only and comply with local firearm regulations.
